You are here: HAFI Beschläge GmbH > Products > Public Line Profilrahmentürdrücker 316 eckig

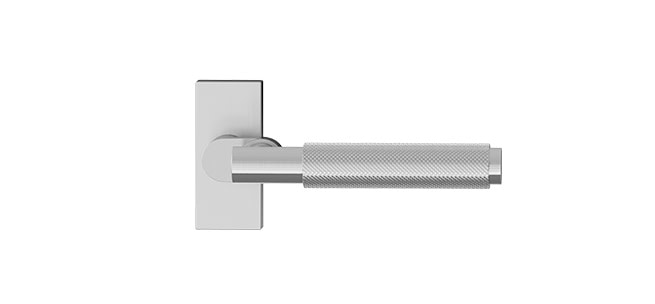

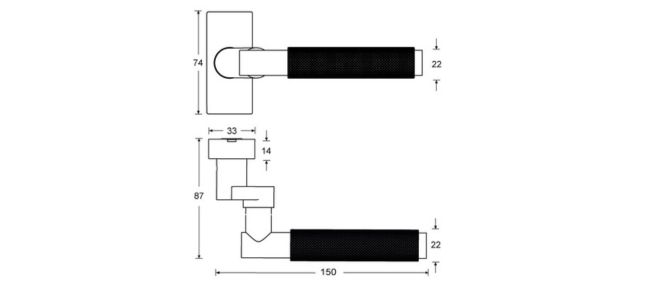

Public Line Design 316 on lever rosette 798
Maintenance-free stainless steel door lever
1,000,000 movement cycles with spring preload according to certificate
Not suitable for right/left use.
| free movement | < 0,5 mm |
| free angular movement | < 0,5 mm |
Increased tensile stress 3500 N
Classification key according to DIN EN 1906
| 4 | 7* | – | B | 1 | 5 | 0 | B |
*Durability certified for 1,000,000 cycles
Public Line Design 316 on lever rosette 798
Maintenance-free stainless steel door lever
200,000 movement cycles with spring support according to certificate
Can be used on the right or left.
| free movement | < 1,0 mm |
| free angular movement | < 1,0 mm |
Classification key according to DIN EN 1906
| 4 | 7 | – | B | 1 | 5 | 0 | A |
Some downloads are available here. To open some files you need the Adobe Acrobat Reader, which you can download here.
